Description
Rackmount Lithium Battery

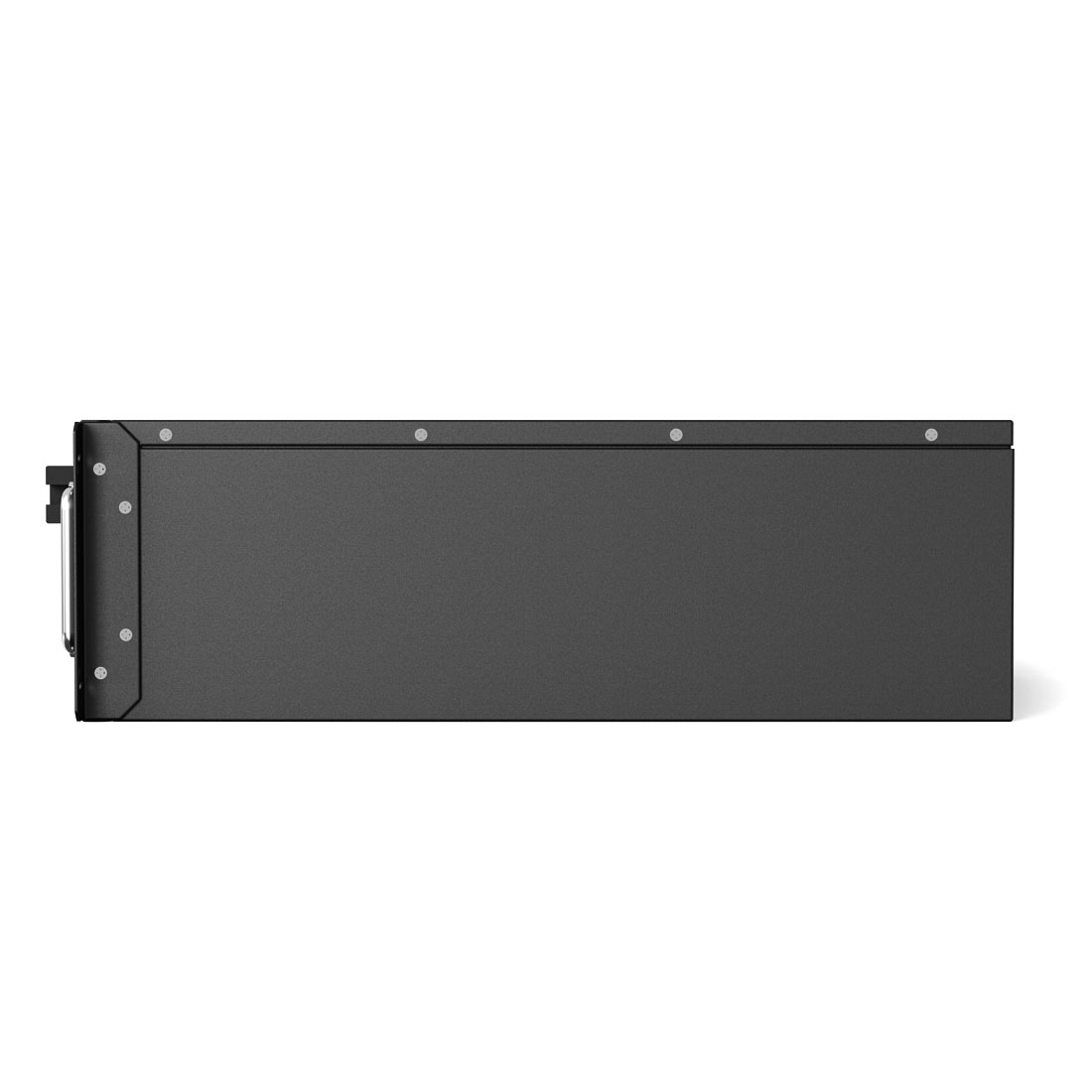

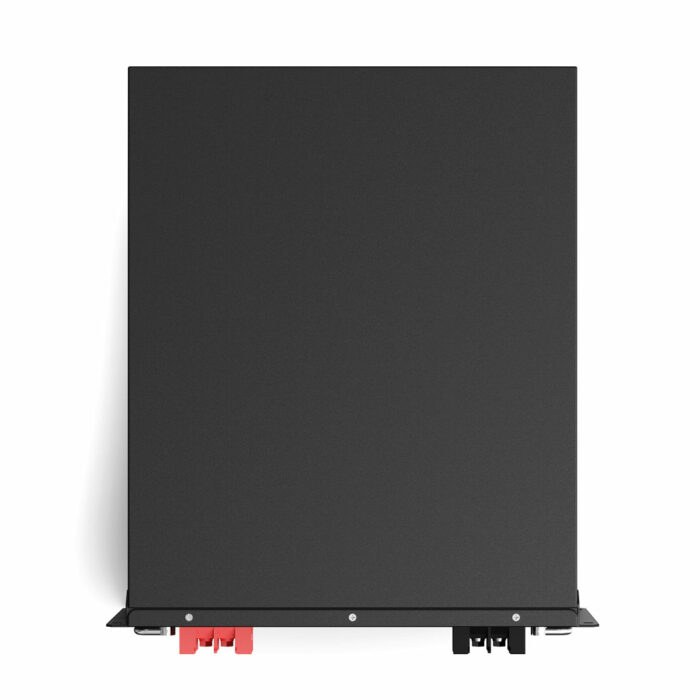

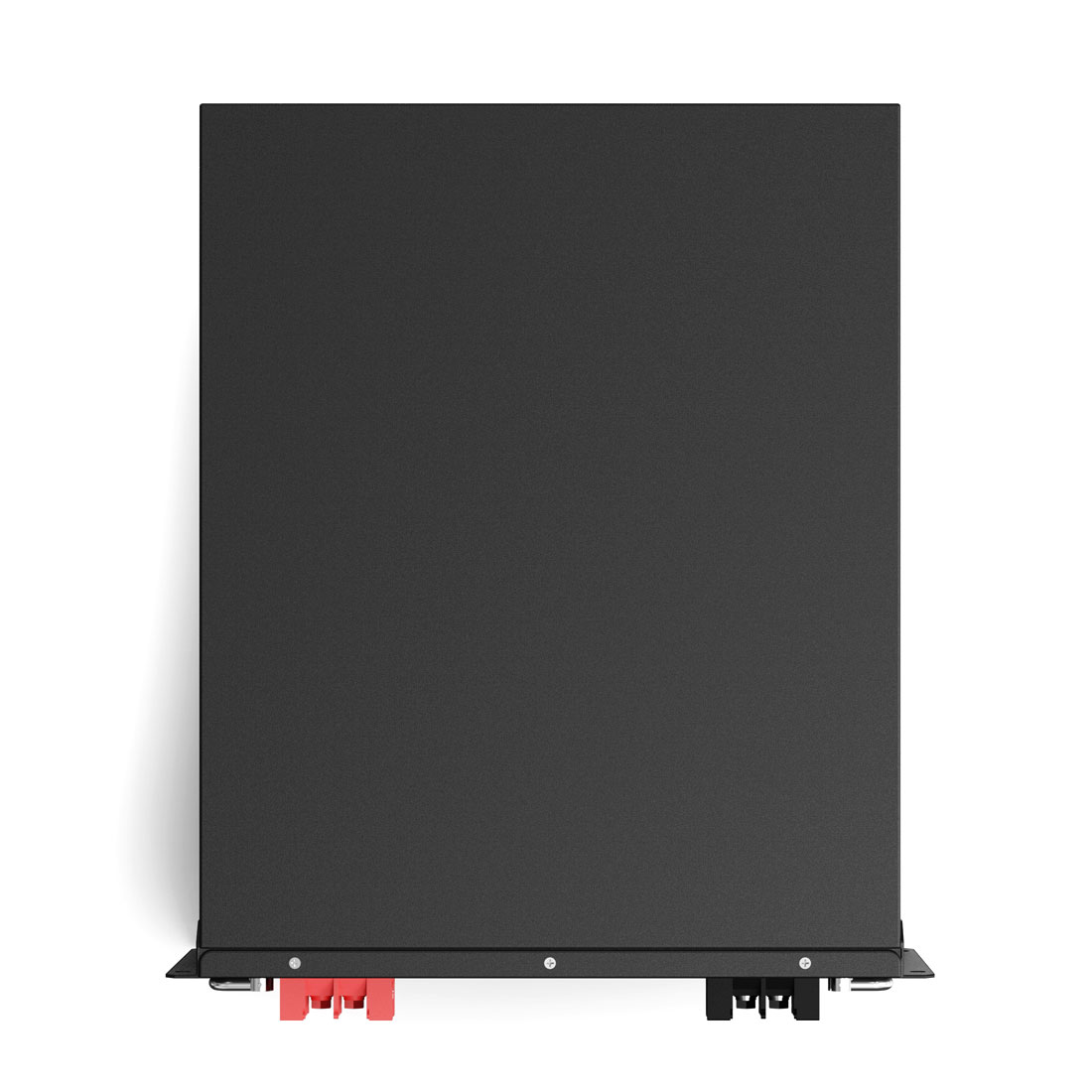

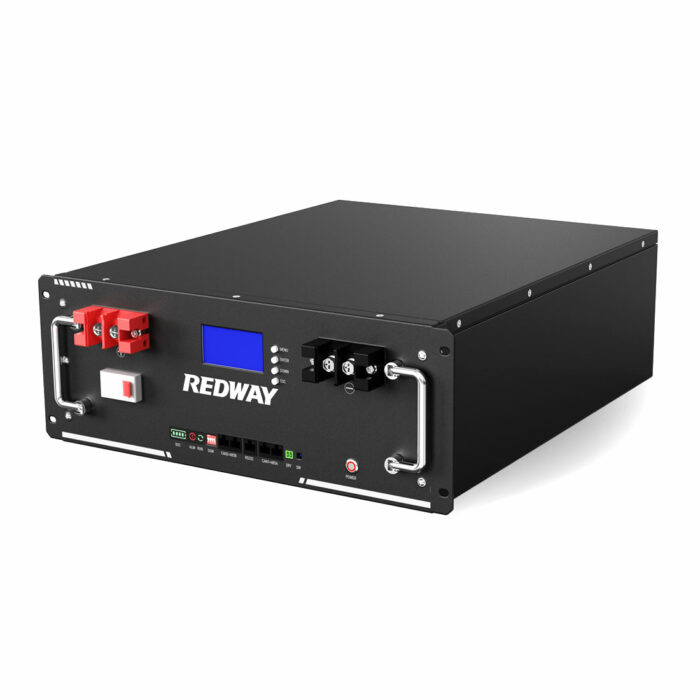

51.2V 150Ah Rack-mounted Lithium Battery Factory (PM-LV51150-4U)
- MOQ: 5
- Delivery: 25 Days
- OEM / ODM
- FOB, EXW, CIF
- FedEx, DHL, UPS, TNT
- Air, Sea, Land Transport
- 10FT, 20FT, 40FT, 60FT Container
Specifications
- ApplicationsC&I ESS, Data Center, Server Room, Telecom Base Station, School, Hospital, Home-ESS, Solar / Off-Grid / On-Grid / Hybrid ESS System
- Cell Type LiFePO4 (LFP)
- Rated Voltage51.2V
- Rated Capacity150Ah
- Rated Energy7.68 kWh
- Dimensions (L*W*H)550 x 440 x 178 mm / 21.6 x 17.3 x 7 inches / 4U
- Weight52 kg / 114 lb
- Max Charge Voltage58.4V
- Discharge Cut-off Voltage40V
- Max Continuous Charge Current100Ah
- Max Continuous Discharge Current100Ah
- Self-discharge2% per month
- Cycle Life8000 Cycles (@80% DOD)
- Max Parallel Connection16 (or Customizable to 32)
- IP RatingIP21 (Indoor)
- TerminalM6 (Threaded)
- Optional TerminalESS Single Core Energy Storage Connector
- BMSJBD Communication BMS
- CommunicationRS485
- SNMPOptioinal
- LCD DisplayYes
- Circuit BreakerYes
- Power SwitchYes
- Compatible InvertersDeye, Victron, GOODWE, Sol-Ark, SRNE, Solis, SAJ, Growatt, Luxpower, Voltronic, SMA, FOX, etc.
- Optional UpgradesBluetooth, App, SNMP, Self-heating, CAN-bus, PC Monitoring Software, WiFi, 4G, GPS, RS232, TACP, Thermal Aerosol Fire Suppression Device, Solar MPPT, Inverter, etc.
- Charge Temperature0°C ~ 60°C / 32°F ~ 140°F
- Discharge Temperature-20°C ~ 60°C / -4°F ~ 140°F
- Storage Temperature0°C ~ 45°C / 32°F ~ 113°F
- CabinetOptional
- Design Life20 Years
- User ManualYes
- Silkscreen / Label / Laser LogoYes
- OEMYes
- CertificationUL1642, UL1973, IEC62619, CE, MSDS, UN38.3
- ExportEurope, Middle East, Africa, Asia, Brazil.
